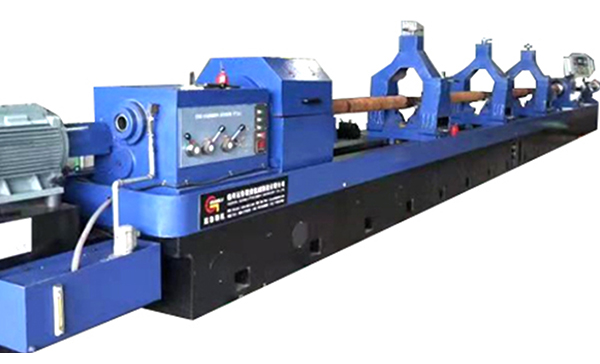

BTA Deep Hole Drilling Machine for Aerospace Components
Home » Products » Deep Hole Drilling and Boring Machine » BTA Deep Hole Drilling Machine for Aerospace Components
Machine Brief of BTA Deep Hole Drilling Machine for Aerospace Components
1) The machine is with CNC Siemens system. English version: 828D.
2) The machine is driven back rack and pinion.
3) Oil box and small parts of the panels are spray plastics treatment. (powder painting).
4) The machind have drill box, so the tool can rotary as well.
5) According to your drawings and data information, our suggest process is: firstly BTA drilling and then fine boring, then finally honing the jobs.
6) The machine is with 24 months quality guruantee.
Machine Parameters of BTA Deep Hole Drilling Machine for Aerospace Components
Series |
Item Name |
Supplier |
Series |
Item Name |
Supplier |
1 |
CNC system/Servo infeed motor |
SIEMENS |
8 |
Motor of coolant system |
China brand |
2 |
Main motor |
SIEMENS |
9 |
Gear pump of coolant system |
China brand |
3 |
Spindle bearing |
NSK |
10 |
Main hydraulic pressure components of hydraulic system |
Taiwan brand |
4 |
Screw bearing |
China brand |
11 |
Main electric components |
SIEMNES/SCHNEIDER |
5 |
Infeeding used rack and pinion |
Taiwan brand |
12 |
Automatic lubrication device |
China brand |
6 |
Chips removal device |
China brand |
13 |
Chain |
China |
T2135 Deep Hole Drilling and Boring MachineT2135 deep hole boring machines series are specially for the cylindrical workpiece, such as lathe's spindle holes, through holes, blind holes, step holes of all kinds of machinery hydralic oil cylinders, air cylinders, the machine can drill, bore and also press...
TK2120 CNC Deep Hole Drilling and Boring MachineAdopting internal chip-discharging strategy, which handles diameter from Φ30mm to Φ100mm (drilling), our TK2120 SeriesCNC Deep Hole Boring Machine's drilling, boring and rolling functions are applicable to propeller, landing gear and ejection seat; various barrels...
-
