TH2120 Deep Hole Boring and Honing Machine
Home » Products » Deep Hole Drilling and Boring Machine » TH2120 Deep Hole Boring and Honing Machine
Features of TH2120 Deep Hole Boring and Honing Machine

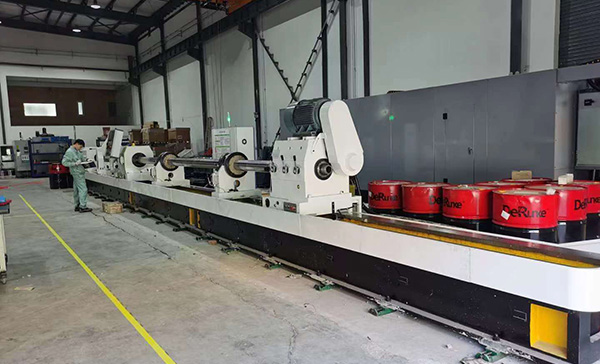

TH2120 Deep hole boring and honing machine can bore and hone.

The body of TH2120 deep hole boringand honing machine is good in regidity, high accuracy. The spindle speed range is wide, infeed system is driven by AC servo motor, which can meet all kinds of deep hole process, the oil supply fasten device and workpiece clampling device adopts hydralic system, and show the pressure value, safety and reliable.

We can also make similar machines basing on the above machine, different length. We can make this kind of deep hole drillingand boring machines according to customers' requirement.

The machine is special equipment for machining deep cylindrical hole of work pieces. It can be perfectly suited for boring, through holes, blind and step holes in workpieces; Such as, apindle of various kinds of machines, many kinds of hydraulic oil cylinders and cylinders and drill collars in the gas and oil field.

It adopts BTA processing method, it can not only drill the deep holes, but also bore the deep holes. When drilling the workpiece, it adopts BTA chip remove method, that is: the coolant liquid arrive the drilling parts through oil supply device, the iron chips and coolant oil return to the drain back tank and chips removal device through the drilling bar hole. Through the above method to realize the drilling purpose.

When boring the workpiece, we adopts pull boring front chip removal method(pull the boring head go ahead, and remove the front chips by that way), the headstock spindle front equips chips removal device, used for boring and chips remove. When boring the workpiece, the workpiece rotary, so as to enhance the boring accuracy. The workpiece adopts double taper plate fasten position, workpiece fasten easily. Position liable.

BTA drill granted oil cooler for the cooling fluid, the BTA process, drilling deep holes in the carbon steel, alloy steel and other solid material, the aspect ratio up to 1:100.

Machine Main Technical Data

Items

TH2120

Drilling diameter range

30mm to 120mm

Max.diameter for boring

200mm

Boring diameter range

40-200mm

Max. depth for drilling and boring

Max lenth can be 12meters.

Chuck diameter for clamping work piece

60mm -300mm

Height from spindle center to machine bed

350mm

Speed range for spindle

61-1000r/min (11kinds)

Infeed speed range (stepless)

5-1000mm/min

Rapid travel speed for carriage

2m/min

Main motor power

30kW

Hydraulic pressure pump motor power

1.5kW

Carriage fast moving motor power

3kW

Infeeding motor power

3.7kW

Cooling pump motor power

4kw

Rated pressure for cooling system

2.5MPa

Flowing for cooling system

200 L/min

Rated working pressure for hydraulic system

6.3MPa

Control system

Semi-auto

T2125 Deep Hole Drilling and Boring Machine
T2125 Deep Hole Drilling and Boring MachineT2125 deep hole drilling and boring machine is specialized in processing equipments with peck parts. It is controlled by KND CNC system (the SIMENS or FANUC CNC system are optional) accuracy spindle bearing and oil carriage bearing, with which the accuracy is increased, and...
T2150 Deep Hole Boring Machine
T2150 Deep Hole Boring MachineT2150 deep hole drilling and boring machine is mature conventional products of our company, specialized for processing cylindrical hole workpiece equipment, machine tool rigidity, good precision, wide range of spindle speed, feed system driven by AC servo motor of Japan, can...
TSK2108 CNC Deep Hole Drilling and Boring Machine
TSK2108 CNC Deep Hole Drilling and Boring MachineTSK2108 deep hole drilling machine (BTA Deep Hole Drilling Machine) hole diameter Ø30 ~ 150mm drill in long bar in massive production, BTA system performs provide successful total solution. TSK2108 deep hole drilling machine (BTA Deep Hole Drilling Machine) uses the BTA processing...
