T2150 Deep Hole Drilling and Boring Machine
Home » Products » Deep Hole Drilling and Boring Machine » T2150 Deep Hole Drilling and Boring Machine

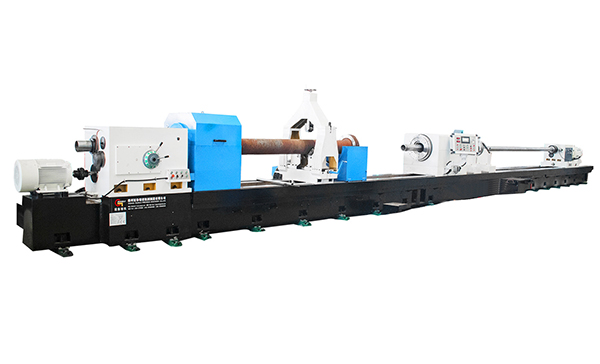

T2150 Deep Hole Drilling and Boring Machine

T2150 deep hole drilling and boring machine is mature conventional products of our company, specialized for processing cylindrical hole workpiece equipment, machine tool rigidity, good precision, wide range of spindle speed, feed system driven by AC servo motor of Japan, can adapt to the needs of a variety of deep hole machining technology. Delegated oil and workpiece fastening tightly the hydraulic device, instrument display, safe and reliable.

T2150 deep hole drilling and boring machine is a special machine tool for machining cylindrical parts, it can drill through holes, blind holes, boring hole stepped hole. In the drilling mode is BTA mode, the boring way to push boring, chip to chip the way forward, a large number of production is suitable to be used in production, and is also suitable for the single piece and small batch production.

T2150 deep hole drilling and boring machine is a series of products, can also provide all kinds of distortion products according to user needs.

The body of T2150 deep hole boring machine is good in regidity, high accuracy. The spindle speed range is wide, infeed system is driven by AC servo motor, which can meet all kinds of deep hole process, the oil supply fasten device and workpiece clampling device adopts hydralic system, and show the pressure value, safety and reliable. It applies to boring and rolling operation (producing roughness 0.4-0.8μm) in machining, locomotives, ships, coal machinery, hydraulics, power machinery, pneumatic machinery and other industries. Here's a few options for Deep-hole boring machine based on workpieces.

1. Rotating Workpiece, Rotating Cutters + Repeated Feeding

2. Rotating Workpiece, Non-rotating Cutters + Repeating Feeding

3. Non-rotating Workpiece, Rotating Cutters + Repeated Feeding

We can also make similar machines basing on the above machine, different length according to customers' requirement.

T2150 deep hole boring machine also have CNC model.

Features of T2150 Deep Hole Drilling and Boring Machine

The body of T2150 deep hole drilling and boring machine is good in regidity, high accuracy. The spindle speed range is wide, infeed system is driven by AC servo motor, which can meet all kinds of deep hole process, the oil supply fasten device and workpiece clampling device adopts hydralic system, and show the pressure value, safety and reliable.

We can also make similar machines basing on the above machine, different length. We can make this kind of deep hole drillingand boring machines according to customers' requirement.

The machine is special equipment for machining deep cylindrical hole of work pieces. It can be perfectly suited for boring, through holes, blind and step holes in workpieces; Such as, apindle of various kinds of machines, many kinds of hydraulic oil cylinders and cylinders and drill collars in the gas and oil field.

It adopts BTA processing method, it can not only drill the deep holes, but also bore the deep holes. When drilling the workpiece, it adopts BTA chip remove method, that is: the coolant liquid arrive the drilling parts through oil supply device, the iron chips and coolant oil return to the drain back tank and chips removal device through the drilling bar hole. Through the above method to realize the drilling purpose.

When boring the workpiece, we adopts pull boring front chip removal method(pull the boring head go ahead, and remove the front chips by that way), the headstock spindle front equips chips removal device, used for boring and chips remove. When boring the workpiece, the workpiece rotary, so as to enhance the boring accuracy. The workpiece adopts double taper plate fasten position, workpiece fasten easily. Position liable.

Machine Main Technical Data

Items

T2150

Drilling diameter range

30mm to 120mm

Max.diameter for boring

500mm

Boring diameter range

120-500mm

Max. depth for drilling and boring

Max lenth can be 12meters.

Chuck diameter for clamping work piece

300mm -650mm

Height from spindle center to machine bed

625mm

Speed range for spindle

3-315r/min (21kinds)

Infeed speed range (stepless)

5-500mm/min

Rapid travel speed for carriage

2m/min

Main motor power

30kW

Hydraulic pressure pump motor power

1.5kW

Carriage fast moving motor power

3kW

Infeeding motor power

5.5kW

Cooling pump motor power

5.5kw 3groups

Rated pressure for cooling system

0.36MPa

Flowing for cooling system

300/600/900 L/min

Rated working pressure for hydraulic system

6.3MPa

Control system

Semi-auto
