Deep Hole Skiving, Roller Burnishing Machine
Home » Products » Deep Hole Skiving, Roller Burnishing Machine
The Processing Property of the Machine

Deep hole skiving roller and burnishing machine is a new type of efficient deep hole machine, independently developed by our company reference to the technology of the similar foreign machines. Deep hole skiving roller and burnishing machine is equipped with large power, strong rigidity, wide margin of machining process and extremely high machining efficiency, is the ideal equipment for all kinds of cylindrical workpieces with deep holes. Deep hole skiving roller and burnishing machine can process a variety of mechanical hydraulic oil cylinder, cylindrical workpiece holes and ladder holes, etc.

Deep hole skiving roller and burnishing machine is mainly used for boring and rolling processing, machine tool adopting the precision boring cutter rotating scrape, rolling processing technology. Remove chips in front when boring and scraping and the boring way is to push boring, granted by the oil tank in central of boring bar, remove chips on the head of a bed. The rolling is the post-tensioning, applies the high-speed scraping and boring rolling head, can processing efficiently the oil cylinder, reversing the traditional process of a rough boring, glossy boring, grinding cylinder, the production efficiency is the traditional process of 5 to 10 times. Application of this machine will have an epoch-making revolution for the oil cylinder production. Cylindricity and alignment of processing workpieces is very high, cutting and rolling speed can reach 1 m/min with the cylinder produced by cold drawn pipe, cutting and rolling speed can reach 0.3 m/min with the cylinder produced by hot rolled pipe. Finish the molding at the first time.

The bed of deep hole skiving roller and burnishing machine is manufactured by high quality cast iron, with strong rigidity and strong stability. Boring bar box spindle is drove by ac servo motor, boring bar box spindle is drove by servo motor, wide speed range, large output torque, feed system uses AC servo motor driven double rack transmission, smooth feeding, long service life and can adapt to the needs of all kinds of deep hole machining process, workpiece loading card adopts tight hydraulic cylinder, stable and reliable, easy handling, electrical system adopts centralized control CNC system, can be interactive, graphical display, flexible operation, safeand reliable. In production it is suitable for mass production can also be suitable for small batch production.

Deep hole skiving roller and burnishing machine is equipped with large capacity automatic chip removal machine, drum magnetic separator, collect automatically iron into attle box, cooling fluid can be recycled by precision filtration.

The accuracy of machine machining

Precision of bore diameter: drilling hole IT8 ~ IT9; Boring hole IT7

Roundness: 0.036mm/Ф200mm (after the fine boring)

Cylindricity: 0.05/500mm (after the fine boring) 40mm-1200mm (different model)

Roughness: Heavy boring Ra6.3um
Fine boring Ra1.6um
Rolling: Ra0.4um

Machine Working Beat

For example: Processing Φ 125 precision cold drawn pipe, unilateral cutting amount of tube billet < 0.4 mm, inner diameter ovality of the pipe < 0.1, the pipe length is 3000 mm, material is 45 # steel and no tempering hardness < HB150.

Processing method: Fix the workpiece, turn boring bar, push the workpiece to scraping and pull to roll.

Clamp workpiece positioning: Cant chamfer on both ends of the lathe processing, fix tight the workpiece with double cone, clamp with caliper.

Cutting tool:

Korean combination head of scraping and rolling·········Φ125

Boring bar·········Φ100

Guide sleeve·········Φ125+0.15

Guide sleeve·········Φ125+0.2

Boring bar support nylon sleeve·········Φ100

Grant oiler nylon sleeve·········Φ100

Boring bar lock set·········Φ100

Cone plate·········design according to the workpiece diameter

Refer to the process:

Workpiece speed·········550 r/min

Scraping feeding·········900 mm/min

Rolling feeding·········1000 mm/min

Deep Hole Skiving, Roller Burnishing Machine

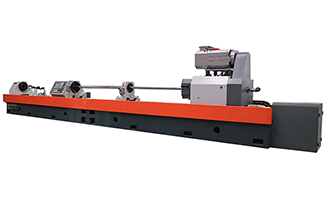

TG2115x8000mm Deep Hole Skraping Burnishing Machine
TG2115x8000mm Deep Hole Skraping Burnishing MachineTG2115 is the machine that speciallized for small diameter hot steel pipe. The machine design refers to Sierra of USA,combined rough boring, precision skiving & burnishing into one process. High efficient and high precision.
TG2115x1500mm Deep Hole Skiving Roller and Burnishing Machine
TG2115x1500mm Deep Hole Skiving Roller and Burnishing MachineTG2115x1500mm deep hole skiving roller and burnishing machine is a highly-efficient and precise machine independently-developed by our company for machining work-piece inner bores in place of original deep-hole drilling and boring machine. TG2115x1500mm deep hole skiving roller...
TG2115x6000mm Deep Hole Skiving Roller and Burnishing Machine
TG2115x6000mm Deep Hole Skiving Roller and Burnishing MachineTG2115x6000mm deep hole skiving roller and burnishing machine is applicable for machining cylindrical deep-hole work-pieces, various types of mechanic hydraulic oil cylinders, cylindrical through-holes and blind-holes and stepped holes. The machine is mainly used for bore...
TG2Zx2106mm Double Spindle Deep Hole Skiving Roller and Burnishing Machine
TG2Zx2106mm Double Spindle Deep Hole Skiving Roller and Burnishing MachineTG2Zx2106mm double spindle deep hole skiving roller and burnishing machine is a highly-efficient and precise machine independently-developed by our company for machining work-piece inner bores in place of original deep-hole drilling and boring machine. This machine has two spindles...
TG2115x4000mm Deep Hole Skraping Boring Machine
TG2115x4000mm Deep Hole Skraping Boring MachineThe bed of TG2115x4000mm deep hole skraping boring machine is manufactured by high quality cast iron, with strong rigidity and strong stability. Boring bar box spindle is drove by ac servo motor, boring bar box spindle is drove by servo motor, wide speed range, large output torque, feed...
TGG2115x4000mm Deep Hole Skraping Boring Machine
TGG2115x4000mm Deep Hole Skraping Boring MachineTGG2115x4000mm deep hole scraping boring machine has a big ration power, a high rigidity, a wide allowance of machining process, and a very high machining efficiency, as ideal equipment suitable for machining various cylindrical deep-hole work pieces, capable of machining various mechanic...
TG2125x6000mm Deep Hole Skraping Rolling Machine
TG2125x6000mm Deep Hole Skraping Rolling MachineTG2125x6000mm deep hole scraping rolling machine is applicable for machining cylindrical deep-hole work-pieces, various types of mechanic hydraulic oil cylinders, cylindrical through-holes and blind-holes and stepped holes. The machine is mainly used for bore and roll machining. The...
TG2115x8000mm Deep Hole Skraping Burnishing Machine
TG2115x8000mm Deep Hole Skraping Burnishing MachineTG2115x8000mm deep hole scraping burnishing machine is a new-type highly-efficient machine independently-developed by our company by referring to the technology of the machine of similar type of Koran Merrill Lynch in place of original deep-hole drilling and boring machine. The machine...
