Deep Hole Gun Drilling Machine for Medical Device (Small Holes)

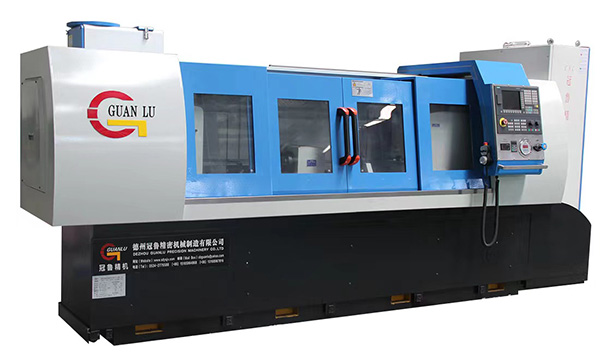

ZSK2101x500mm deep hole drilling machine is ZSK2101 deep hole drilling machine (gun drilling machine) is specially used for micro deep hole processing machine. The gun driller has to choose foreign brand, the deep hole diameter range and deep hole depth can be manufactured according to customer's requirement.
1. Fix the workpiece on the clamping tools.
2. Pneumatic system control guide suite of the guide frame.
3. Start the cooling system high pressure pump group.
4. Start the drilling bar box, drive the driller rotary.
5. Z axis infeed system drive driller infeed.
6. After drilling to the setted position, driller return, coolant stop, sealed guide suite loose.
2~6 steps are completed by CNC control
Specification |
Parameters |
Remak |
|||
Working capacity |
Drilling diameter range |
Φ2.5~Φ10mm |
|||
Drilling max depth |
500mm |
||||
Machine character |
Z axis |
Infeed speed range |
5~500mm/min |
Stepless |
|
Rapid speed range |
3000mm/min |
||||
Drilling bar box |
Speed range |
500~10000r/min |
Stepless |
||
Motor power |
3KW |
Inverter motor |
|||
Hole length-diameter ratio |
≤100 |
||||
CNC system |
GSK |
||||
Coolant systyem |
Coolant system pressure range |
0~8MPa |
Adjustable |
||
Coolant system flow range |
0~63L/min |
Adjustable |
|||
Filter accuracy |
20μm |
||||
Oil chamber volume |
800L |
|
Machine body
Drilling bar box
Infeeding system (Z axis)
Coolant system
Oil temperature controller machine
Auto chips removal device
Central lubrication system
Pneumatic control system
Guide frame system
Drilling bar support system
Gsk CNC control system
Oil chamber filter device and filter paper
Overflow valve
