Gun Drilling Machine
Home » Products » Gun Drilling Machine
Gun Drilling Machine/Deep Hole Drilling Description:

Our mainly machines of gun drilling series:

Three axis gun drilling machine (we have 500mm depth, 1000mm depth and economic type)

Combination gun drilling machine (with this machine, you can drill from 3mm to 100mm)

Single spindle gun drilling machine

Double spindle gun drilling machines

Four spindle gun drilling machines

Our gun drilling machines, adopts gun drill chips remove methods, though one time continue drilling, can get the processing quality of drilling, expanding and reaming.

Diameter accuracy IT7-IT11

Surface roughness: Ra0.4~Ra6.3

Diameter central linear less than 0.5-1/1000mm

Drilling diameter range: 3mm--40mm

Gun drilling spindle quantity maximum 6 spindles

Deep hole maximum depth 4000mm

Working table maximum loading limit 40tons

Our company has designed the combination deep hole drilling machines, adopts both gun drilling and BTA processing method, deep hole range from 5mm to 100mm, providing the most useful equipment for some factories.

We also can design different solutions according to customers budget, whatever you are group company or small factories, there must be a right model for you.

Application Fields of Gun Drilling Machines

Moulds: water holes, center hole, sprue hole, guide pillar hole and so on.

Hydraulic fields: cylinder, piston rod, the oil hole on the cylinder wall.

Automobile fields: cylinder block (internal-combustion engine), crank axle, steering rack, gear shaft, valve core.

Textile field: all kinds of spindles center holes.

Medical apparatus and instruments: Titanium alloy, stainless steel and other shaft parts deep hole processing.

Electric and turbine fields: rotors, dabber, valve bar, the outer cylinder unit, condenser tube plate, fuel injection equipment, fuel injection nozzle, needle valve, plunger bushing.

Gun Drilling Machine

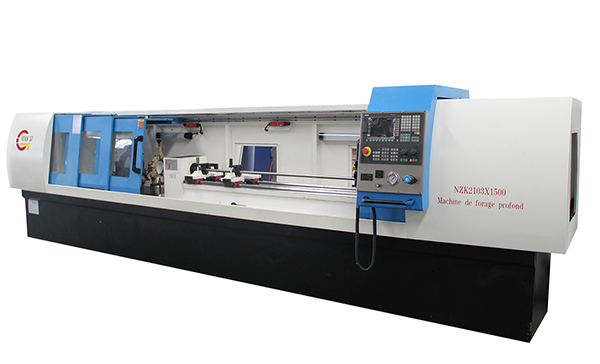

NZK2103(1500mm) Gundrilling Machine
NZK2103(1500mm) Gundrilling Machine1) Drill hole method: Gun drilling method. 2) Machine equips with T-Slot working table, T-slot in the middle is the reference slot with width 18H7. The height from spindle center to T-slot working table is 240mm, length of T-slot working table is 1500mm.

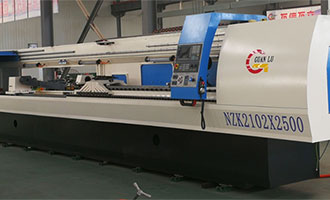

NZK2102(2500mm) Gundrilling Machine
NZK2102(2500mm) Gundrilling Machine1) Drill hole method: Gun drilling method. The machine is used for processing concentric hole on cylindrical workpieces. Both workpiece and cutter can rotate. 2) When boring, adopts front chips removal method. It means the chips will flow out from headstock front end.

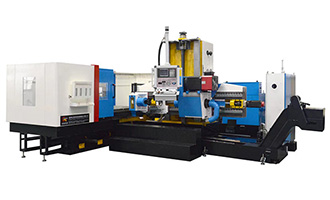

ZSK2103A(1M) Three Axis Gundrilling Machine for Molds or Blocks
ZSK2103A(1M) Three Axis Gundrilling Machine for Molds or Blocks1) Z Axis GSK CNC system. 2) X,Y Z1 (working table driven)axis is digital display.(gear box control by manual). 3) Worktable is 1500mmx1200mm. 4) Drill depth: 1500mm. 5) Hole Diameter 3-30mm. 6) Auto Chips convoyer device. 7) Jobs can move left and right, (gear motor drive the screw turning,the data display instrument can show the jobs position numerical value).
ZKB2102 Three Coordinate Deep Hole Gun Drilling Machine
ZKB2102 Three Coordinate Deep Hole Gun Drilling MachineZKB2102 deep hole drilling machine is also a three coordinate deep hole gun drilling machine, this three coordinate deep hole gun drilling machine is suitable for working with special sharped workpiece, the deep hole diameter range and deep hole depth can be manufactured according...

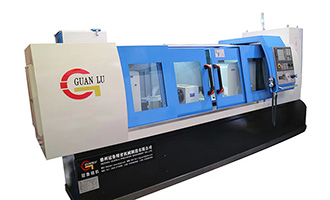

ZKB2103 Large Type Three Coordinate Deep Hole Gun Drilling Machine
ZKB2103 Large Type Three Coordinate Deep Hole Gun Drilling MachineZSK2103 deep hole drilling machine is also a three coordinate deep hole gun drilling machine, this machine is suitable for working with special sharped workpiece, the deep hole diameter range and deep hole depth can be manufactured according to customer's requirement. This machine is...
ZKB2103A Economical Type Deep Hole Gun Drilling Machine
ZKB2103A Economical Type Deep Hole Gun Drilling MachineZSK2103A Economical deep hole drilling machine is also a three coordinate deep hole gun drilling machine, this machine is suitable for working with special sharped workpiece, the deep hole diameter range and deep hole depth can be manufactured according to customer's requirement...

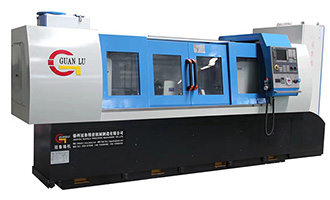

ZSK2101×500mm Deep Hole Gun Drilling Machine for Medical Device (Small Holes)
ZSK2101×500mm Deep Hole Gun Drilling Machine for Medical Device (Small Holes)ZSK2101x500mm deep hole drilling machine is ZSK2101 deep hole drilling machine (gun drilling machine) is specially used for micro deep hole processing machine. The gun driller has to choose foreign brand, the deep hole diameter range and deep hole depth can be manufactured according...
ZSK2103A×300mm Deep Hole Gun Drilling Machine
ZSK2103A×300mm Deep Hole Gun Drilling MachineZSK2103Ax300mm deep hole drilling machine is for many type of metals, the deep hole diameter range and deep hole depth can be manufactured according to customer's requirement. Hole diameter range: 3mm -30mm. Hole diameter Max.depth 300mm. CNC system: GSK of China. Fully cover...

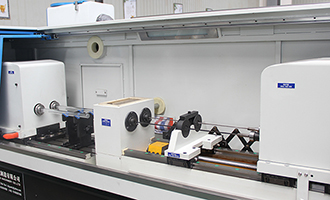

ZSK2103×2×500mm Deep Hole Gun Drilling Machine
ZSK2103×2×500mm Deep Hole Gun Drilling MachineZSK2103X2X500mm deep hole drilling machine is for many type of metals, the deep hole diameter range and deep hole depth can be manufactured according to customer's requirement. Adopt gun drilling method (chips removed out), work piece fixed, cutters rotary infeeder...
ZSK2103×2×1000mm Two Axis Deep Hole Gun Drilling Machine
ZSK2103×2×1000mm Two Axis Deep Hole Gun Drilling MachineTwo Axis Deep Hole Gun Drilling Machine. Hole diameter range: 3mm -30mm. Hole diameter Max.Depth 1000mm. CNC system: GSK of China. Fully cover, oil cooler, auto chips removal, auto lubrication system...
ZSK2103×4×500mm Four Axis Deep Hole Gun Drilling Machine
ZSK2103×4×500mm Four Axis Deep Hole Gun Drilling MachineHeadstock, chips removal, circulation pump are optinals, offer did not include the equips mentioned. Adopts gun drill processing method.drilling bits rotary and infeeding are stepless. Four spindles structure, can drill four workpiece at the same time. CNC SYSTEM: GSK (China) or semi auto...

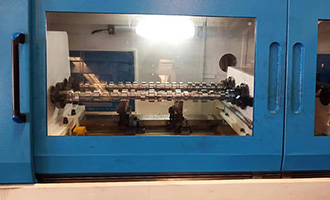

ZSK2104×1000mm Deep Hole Gun Drilling Machine
ZSK2104×1000mm Deep Hole Gun Drilling MachineZSK2104x1000mm deep hole drilling machine is for many type of metals, the deep hole diameter range and deep hole depth can be manufactured according to customer's requirement. Hole diameter range: 3mm -30mm. Hole diameter Max.Depth 1000mm. CNC system: GSK of China...
ZSK2104×1500mm Deep Hole Gun Drilling Machine
ZSK2104×1500mm Deep Hole Gun Drilling MachineZSK2104x1500mm deep hole drilling machine (gun drilling machine) is for many type of metals, the deep hole diameter range and deep hole depth can be manufactured according to customer's requirement. Hole diameter range: 3mm -30mm. Hole diameter Max.Depth 1500mm. CNC system...
ZSK2104×2000mm Deep Hole Gun Drilling Machine
ZSK2104×2000mm Deep Hole Gun Drilling MachineZSK2104x2000mm deep hole drilling machine (gun drilling machine) is for many type of metals, the deep hole diameter range and deep hole depth can be manufactured according to customer's requirement. Hole diameter range: 3mm -30mm. Hole diameter Max.Depth 2000mm. CNC system...
ZSK2104×2500mm Deep Hole Gun Drilling Machine
ZSK2104×2500mm Deep Hole Gun Drilling MachineZSK2104x2500mm deep hole drilling machine is for many type of metals, the deep hole diameter range and deep hole depth can be manufactured according to customer's requirement. Hole diameter range: 3mm -30mm. Hole diameter Max.Depth 2000mm. CNC system: GSK of China...
ZMK2102×1000mm Gun Drilling Machine for Glass Material
ZMK2102×1000mm Gun Drilling Machine for Glass MaterialThis deep hole gun drilling machine is used for optical fiber and cable manufacturing industry, drilling deep hole in a certain size in high-purity quartz glass rod of a certain diameter in a specific location requirements (commonly known as a Panda eye). The hole has a higher roughness, parallelism...

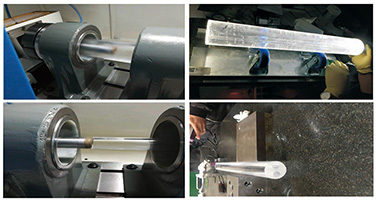

Deep Hole Drilling Machine For Quartz Glass Rods
Deep Hole Drilling Machine For Quartz Glass RodsThis machine is applied to optical fiber preform in the manufacturing field; including the optical fiber preform, the handle rod (or connecting rod) of the center hole, the panda hole or porous drill, honing and polishing, processing precision, smoothness and high transparency. processing from 12mm...
