ZSK2103×2×500mm Deep Hole Gun Drilling Machine
Home » Products » Gun Drilling Machine » ZSK2103×2×500mm Deep Hole Drilling Machine (Gun Drilling Machine)

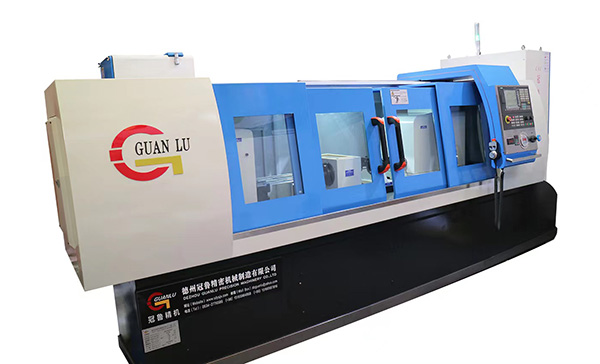

ZSK2103×2×500mm Deep Hole Gun Drilling Machine

ZSK2103X2X500mm deep hole drilling machine is for many type of metals, the deep hole diameter range and deep hole depth can be manufactured according to customer's requirement.

Hole diameter range: 3mm -30mm

Hole diameter Max.depth: 1000mm

CNC system: GSK of China

Fully cover, oil cooler, auto Chips removal, auto Lubrication system

Double spindles

Machine Brief

Adopt gun drilling method (chips removed out), work piece fixed, cutters rotary infeeder.

Deep holes screwness accuracy every 1000mm, screwness is less than 1mm.

Roughness: Ra0.8~3.2um (depends on materials)

Size accuracy: IT8~IT11

Workpiece Processing Procedure

1. Fix the workpiece on the clamping tools.

2. Pneumatic system control guide suite of the guide frame.

3. Start the cooling system high pressure pump group.

4. Start the drilling bar box, drive the driller rotary.

5. Z axis infeed system drive driller infeed.

6. After drilling to the setted position, driller return, coolant stop, sealed guide suite loose.

2~6 steps are completed by CNC control

Machine Mainly Parameters

Specification

Parameters

Remak

Working capacity

Drilling diameter range

Φ4~Φ20mm

Drilling max depth

500mm

Spindle space

120/180/250mm

Machine character

Z axis

Infeed speed range

5~500mm/min

Stepless

Rapid speed range

3000mm/min

X axis

Rapid speed

1000mm/min

Traval

650mm

Y axis

Rapid speed

2000mm/min

Traval

300mm

Drilling bar box

Speed range

800~7000r/min

Stepless

Motor power

3KW×2

Inverter motor

Machine loading weight

200kg

Hole length-diameter ratio

≤100

CNC system

FANUC

Coolant systyem

Coolant system pressure range

1~10MPa

Adjustable

Coolant system flow range

6~100L/min

Adjustable

Filter accuracy

20μm

Oil chamber volume

>1000L

Mainly Structure of the Machine

Machine body

Drilling bar box

Infeeding system (Z axis)

Coolant system

Oil temperature controller machine

Auto chips removal device

Central lubrication system

Pneumatic control system

Guide frame system

Drilling bar support system

Gsk CNC control system

Spare Parts

Oil chamber filter device and filter paper

Overflow valve
