T2235 Deep Hole Boring Machine
Home » Products » T2235 Deep Hole Boring Machine

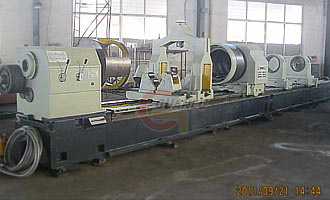

T2235 Deep Hole Boring Machine

T2235 deep hole boring machines series are specially for the cylindrical workpiece, such as lathe's spindle holes, through holes, blind holes, step holes of all kinds of machinery hydralic oil cylinders, air cylinders, the machine can drill, bore and also press, it is adopted BTA chip-out method.

Description of Deep Hole Boring Machine

The body of the T2235 deep hole boring machine is good in regidity, high accuracy. The spindle speed range is wide, infeed system is driven by AC servo motor, which can meet all kinds of deep hole process, the oil supply fasten device and workpiece clampling device adopts hydralic system, and show the pressure value, safety and reliable.

We can also make similar deep hole boring machines basing on the above machine,different length.

We can make this kind of machines according to customers' requirement.

This T2235 deep hole boring machineseries also have CNC model.

Machine Main Technical Data

Items

T2235

Drilling diameter range

Φ40-Φ80mm

Max.diameter for boring

350mm

Boring diameter range

1000-8000mm

Chuck diameter for clamping work piece

220mm -450mm

Height from spindle center to machine bed

450mm

Spindle bore diameter

75mm

Taper of spindle bore

85mm 1:20

Speed range for spindle

40-500r/min (12kinds)

Feed speed range (infinte)

5-1000mm/min

Rapid travel speed for carriage

2m/min

Main motor power

22-30kW

Hydraulic pressure pump motor power

1.5kW

Carriage fast moving motor power

3kW

Feeding motor power

4.4kW

Cooling pump motor power

4kw 4groups

Rated pressure for cooling system

0.36MPa

Flowing for cooling system

100/200/300/400 L/min

Rated working pressure for hydraulic system

6.3MPa

Deep Hole Pull Boring Machine
Deep Hole Pull Boring MachineThe deep hole pulling boring machine can work on inner hole pull-boring, expand and rolling-pressing. When pull boring machine work, workpiece will static (not rotary), cutter rotary and infeeding, the cutting liquid will enter to cutting area through oil provide device, cooling...

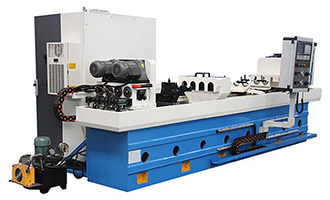

ZSK2104×2000mm Deep Hole Gun Drilling Machine
