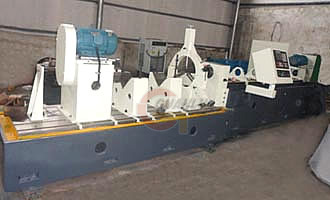

ZKB2103B Deep Hole Drilling Machine
Home » Products » Gun Drilling Machine » ZKB2103B Deep Hole Drilling Machine
Description of ZKB2103B Deep Hole Drilling Machine (Gun Drilling Machine)

Deep Hole Drilling Machine

ZKB2103b deep hole drilling machine (gun drilling machine) is improved basing on the ZSK2102, the platform can load heavy workpiece, this deep hole drilling machine (gun drilling machine) work with middle heavy (below 20tons) workpiece and heavy (below 40tons) workpiece.

Features of Deep Hole Drilling Machine (Gun Drilling Machine)

Equipped with SIEMENS-PRECION 01 CNC system, and the FANUC Oi mate-TC system or KND system, can be provided on customers' order.

Driven by A.C servo motor, transmitted by ball screw.

Adopting guideway conglutinated plastic, smooth running in low speed, without creeping.

Spindle of drilling box is driven by vary speed motor, stepless.

Spindle bearing and guideway surface adopt automatic intermittent lubrication.

High-pressure coolant is supplied by varyspeed motor-driving gear pump.

Equipped with flat chain type automatic chip conveyor.

Machine Mainly Parameters

Item

Parameters

Deep hole diameter range

Φ5-Φ35mm

Infeed motor torque

11N.m

Deep hole maximum depth

2500mm

Drilling bar box spindle driven power

7.5kw

Headstrock spindle speed

380r/min

Headstrock motor power

3kW

Drilling bar box spindle speed (stepless)

400-4000r/min

Machine general power (about)

28kW

Coolant system pressure range

1-10MPa

Infeed drilling bar box fast move speed

3m/min

Coolant system flow range

6-140L/min

Machine general weight

8tons
