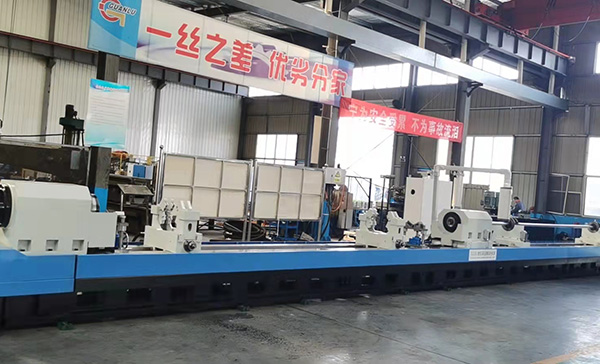

TG2115x8000mm deep hole scraping burnishing machine is a new-type highly-efficient machine independently-developed by our company by referring to the technology of the machine of similar type of Koran Merrill Lynch in place of original deep-hole drilling and boring machine. The machine has a big ration power, a high rigidity, a wide allowance of machining process, and a very high machining efficiency, capable of machining various mechanic hydraulic oil cylinders, the through-holes and stepped holes, etc. of cylindrical work pieces, etc.
The bed of deep hole skiving roller and burnishing machine is manufactured by high quality cast iron, with strong rigidity and strong stability. Boring bar box spindle is drove by ac servo motor, boring bar box spindle is drove by servo motor, wide speed range, large output torque, feed system uses AC servo motor driven double rack transmission, smooth feeding, long service life and can adapt to the needs of all kinds of deep hole machining process, workpiece loading card adopts tight hydraulic cylinder, stable and reliable, easy handling, electrical system adopts centralized control CNC system, can be interactive, graphical display, flexible operation, safeand reliable. In production it is suitable for mass production can also be suitable for small batch production.
Deep hole skiving roller and burnishing machine is equipped with large capacity automatic chip removal machine, drum magnetic separator, collect automatically iron into attle box, cooling fluid can be recycled by precision filtration.
|
Item |
Parameter |
Working scope |
Boring hole diameter range |
Ф38-Ф150mm |
Workpiece length |
8000mm |
|
Boring bar box spindle parameters |
Center height |
> 300mm |
Leading end of cone hole boring bar box spindle |
Ф80mm 1: 20 |
|
The spindle speed range |
50-1800r/min (Ac frequency conversion stepless speed regulation) |
|
Output shaft torque |
≥1000N.m |
|
Feed parameters |
Feed speed range |
5-2000mm/min (stepless) |
Plate moving fast |
3m/min |
|
Machining accuracy |
Locate the length |
0-8m |
Workpiece surface roughness of boring |
≤Ra3.2μm |
|
Workpiece surface roughness of rolling |
≤Ra0.8μm |
|
Workpiece machining straightness |
≤0.05/500 mm |
|
Workpiece machining roundness |
≤0.029/200mm |
|
Motor capacity |
Boring bar motor power |
30KW Ac servo motor |
Feed motor |
5.5kw Ac servo motor |
|
Hydraulic pump station motor |
1.5KW Ac motor |
|
Output cooling pump motor power |
7.5KW two set |
|
Automatic chip removal motor power |
3KW one set |
|
Magnetic separator motor power |
0.75KW one set |
|
Centralized lubrication motor |
0.75KW one set |
|
Others |
Head of the biggest pre-tightening force for the workpiece |
30KN |
The cooling system flow |
200L/min |
|
Cooling system rated pressure |
0.36Mpa |
|
Magnetic separator flow |
400L/min |
