Heavy Duty Deep Hole Skiving, Rolling and Burnishing Machine
Home » Products » Heavy Duty Deep Hole Skiving, Rolling and Burnishing Machine
The Processing Property of Heavy Duty Deep Hole Skiving, Rolling and Burnishing Machine

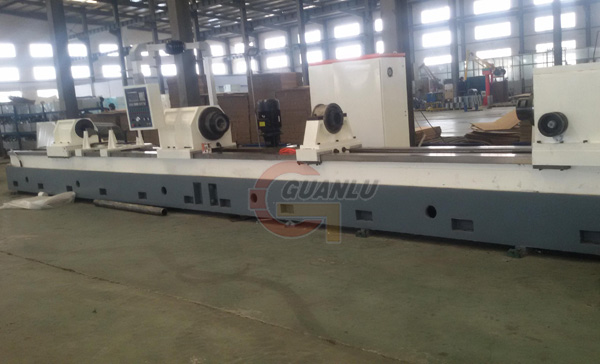

Heavy Duty Deep Hole Skiving, Rolling and Burnishing Machine is a new type of efficient machine, independently developed by our company reference to the technology of the similar foreign machines. The machine is equipped with large power, strong rigidity, wide margin of machining process and extremely high machining efficiency, is the ideal equipment for all kinds of cylindrical workpieces with deep holes.

his machine can process a variety of mechanical hydraulic oil cylinder, cylindrical workpiece holes and ladder holes, etc. The machine is mainly used for boring and rolling processing, machine tool adopting the precision boring cutter rotating scrape, rolling processing technology. Remove chips in front when boring and scraping and the boring way is to push boring, granted by the oil tank in central of boring bar, remove chips on the head of a bed. The rolling is the post-tensioning, applies the high-speed scraping and boring rolling head, can processing efficiently the oil cylinder, reversing the traditional process of a rough boring, glossy boring, grinding cylinder, the production efficiency is the traditional process of 5 to 10 times.

Application of this machine will have an epoch-making revolution for the oil cylinder production. Cylindricity and alignment of processing workpieces is very high, cutting and rolling speed can reach 1 m/min with the cylinder produced by cold drawn pipe, cutting and rolling speed can reach 0.3 m/min with the cylinder produced by hot rolled pipe. Finish the molding at the first time.

Machine bed is manufactured by high quality cast iron, with strong rigidity and strong stability. Boring bar box spindle is drove by 70KW ac servo motor, boring bar box spindle is drove by servo motor, wide speed range, large output torque, feed system uses 48NM ac servo motor driven double rack transmission, smooth feeding, long service life and can adapt to the needs of all kinds of deep hole machining process, workpiece loading card adopts tight hydraulic cylinder, stable and reliable, easy handling, electrical system adopts centralized control CNC system, can be interactive, graphical display, flexible operation, safeand reliable. In production it is suitable for mass production can also be suitable for small batch production.

Machine tool is equipped with large capacity automatic chip removal machine, drum magnetic separator, collect automatically iron into attle box, cooling fluid can be recycled by precision filtration.

The Accuracy of Machine Machining

Precision of bore diameter: drilling hole IT8 ~ IT9; Boring hole IT7.

Roundness: 0.036mm/Ф200mm (after the fine boring).

Cylindricity: 0.05/500mm (after the fine boring).

Roughness: Heavy boring: Ra6.3um. Fine boring: Ra1.6um. Rolling: Ra0.4um.

After-sales service

1. The supplier will supply operation, maintenance and technical training to electrical personnel for the end user of machine tool for free at the scene, mainly including operation, maintenance, maintenance and other basic knowledge training and workshop practice.

2. The quality guarantee period of equipment is one year from the date of final acceptance certificate signed. Problems of the quality guarantee period, the supplier is responsible for free replacement of parts and components, the supplier will give response in (10) hours after receiving a user fault information.

3. Half a year from the date of final acceptance certificate signed, supplier will send personnel to visit the customer at the scene and guide the buyer's personnel for a comprehensive secondary maintenance of the equipment. Replace dirty oil and wearing parts for free.

4. In ten years from the date of final acceptance certificate signed, we supply the end user of machine tool maintenance services at the scene, only charge trip money, room and board.

Machine Main Technical Data

Item

Parameter

Working scope

Boring hole diameter range

Φ38-Φ250mm

Workpiece length

3000mm

Boring bar box spindle parameters

Center height

> 350mm

Leading end of cone hole boring bar box spindle

Φ85mm 1: 20

The spindle speed range

50-1000r/min Ac frequency conversion stepless speed regulation )

Output shaft torque

≥1500N.m

Feed parameters

Feed speed range

5-2000mm/min (stepless)

Plate moving fast

3m/min

Machining accuracy

Locate the length

0-6m

Workpiece surface roughness of boring

≤Ra3.2μm

Workpiece surface roughness of rolling

≤Ra0.4μm

Workpiece machining straightness

≤0.05/500 mm

Workpiece machining roundness

≤0.036/200mm

Motor capacity

Boring bar motor power

70KW Ac servo motor

Feed motor

48NM Ac servo motor

Hydraulic pump station motor

3KW Ac motor

Output cooling pump motor power

11 KW one set, 7.5KW one set

Automatic chip removal motor power

1.5KW one set

Magnetic separator motor power

0.75KW one set

Centralized lubrication motor

0.75KW one set

Others

Head of the biggest pre-tightening force for the workpiece

50KN

The cooling system flow

600L/min

Cooling system rated pressure

0.36Mpa

Magnetic separator flow

600L/min
