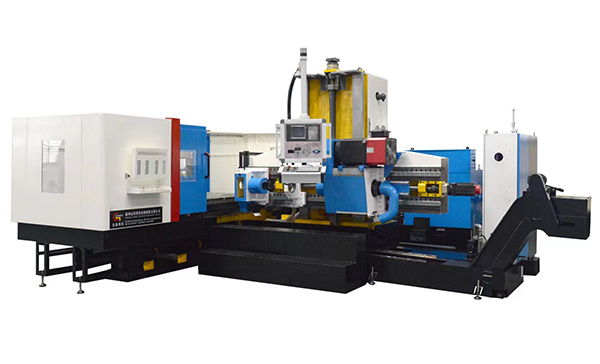

ZSK2103A(1M) Three Axis Gundrilling Machine for Molds or Blocks
Home » Products » Gun Drilling Machine » ZSK2103A(1M) Three Axis Gundrilling Machine for Molds or Blocks
Machine Brief of ZSK2103A(1M) Three Axis Gundrilling Machine for Molds or Blocks:

1) Z Axis GSK CNC system.

2) X,Y Z1 (working table driven)axis is digital display.(gear box control by manual).

3) Worktable is 1500mmx1200mm.

4) Drill depth: 1500mm.

5) Hole Diameter 3-30mm.

6) Auto Chips convoyer device.

7) Jobs can move left and right, (gear motor drive the screw turning,the data display instrument can show the jobs position numerical value).

8) The drill box slide table can move up and down, (gear motor drive the screw turning, the date display instrument can show the jobs position numerical value).

9) Worktable can front and back move,right and left move, and the worktable can rotate by manual, which can indexing for job.

Processing accuracy of ZSK2103A(1M) Three Axis Gundrilling Machine for Molds or Blocks:

Straightness: 1mm/1000mm(every 1000mm, 1mm tolerance).

Roughness: Ra0.8~3.2um.

Deep hole accuracy: IT7~IT11.

Workpiece processing procedure of ZSK2103A(1M) Three Axis Gundrilling Machine for Molds or Blocks:

(1) Fix the workpiece on the working table.

(2) Pneumatic system control guide suite of the guide frame.

(3) Start the cooling system high pressure pump group.

(4) Start the drilling bar box, drive the driller rotary.

(5) Zaxis infeed system drive driller infeed.

(6) After drilling to the setted position, driller return, coolant stop, sealed guide suite loose.

(7) X, Y axis move to the next drilling position, repeat (2)to(6).

(2)~(6) steps are completed by CNC, the (7)step is manual, position display by data display instrument.

Machine mainly parameters of ZSK2103A(1M) Three Axis Gundrilling Machine for Molds or Blocks:

Specification

Parameters

Remak

Working capacity

Drilling diameter range

Φ3~Φ30mm



Drilling max depth

1500mm



Machine character

Z axis

Infeed speed range

5~500mm/min

Stepless

Rapid speed range

3000mm/min



Z1 traval stroke

Traval

500mm



windexing table

Size

Diameter 800mm

Round type

X axis

Traval

1500mm



Y axis



Travel distance



1000mm



Drilling bar box

Speed range

500~5000r/min

Stepless

Motor power

5.5KW

Inverter motor

Machine loading weight

5000kg



Hole length-diameter ratio

≤100



CNC system

GSK( Z axis)

Coolant systyem

Coolant system pressure range

0~8MPa

Adjustable

Coolant system flow range

0~63L/min

Sdjustable

Filter accuracy

20μm



Oil chamber volume
(equips Auto chips convoyer system
Also equips oil cooler.

1000L
