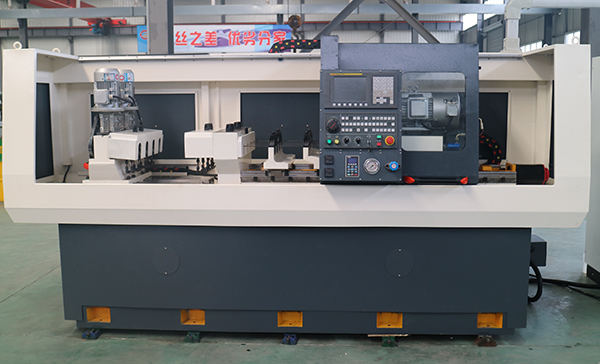

Four Spindles Gundrilling Machine for Orthopaedic Implant
Machine Details of Four Spindles Gundrilling Machine for Orthopaedic Implant
Adopts gun drill processing method drilling bits rotary and infeeding are stepless.
Four spindles structure, can drill four workpiece at the same time.
CNC SYSTEM: GSK(China) or semi auto.
Hole diameter: Φ3mm~Φ15mm
Max Depth：≤ 500mm
Machine Parameters of Four Spindles Gundrilling Machine for Orthopaedic Implant
Size |
Parameters |
Remarks |
||||
Working capacity |
Drilling diameter |
Φ3~Φ15mm |
|
|||
Max. depth |
500mm |
|
||||
Spindle quantity |
4pcs |
|
||||
Spindle distance |
140mm |
Customer can decide |
||||
|
Work pice outer diameter |
≤ 100mm |
Depended by spindle distance |
|||
Machine character |
Drilling box |
Speed |
300~5000r/min |
Stepless |
||
Motor power |
4kW×2 |
Inverter motor |
||||
Z axis |
Infeed speed |
0~500mm/min |
Stepless |
|||
Rapid speed |
3000mm/min |
|
||||
T working table |
400mm×600mm |
|
||||
Cutter center to working table height |
240mm |
|
||||
Total power |
20kW |
|
||||
Diameter-length ratio |
100 |
|
||||
CNC |
GSK(China) |
|||||
Coolant system |
Coolant pressure range |
1~10MPa |
Adjustable |
|||
Coolant system flow |
120L/min |
Adjustable |
||||
Filtering accuracy |
40μm |
|
||||
