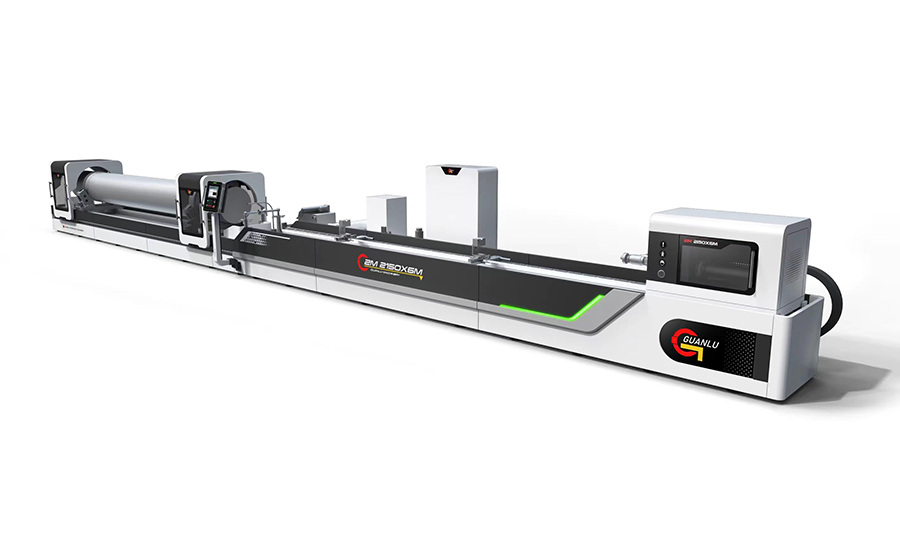

2M2125A Deep Hole Strong Honing Machine
Home » Products » Deep Hole Honing Machine » 2M2125A Deep Hole Strong Honing Machine
Usage and Character of 2M2125A Deep Hole Honing Machine

This deep-hole strong honing machine is specially for all kinds of cylinder shaped workpiece, worked by this machine, the accuracy is up to IT7, surface roughness is up to Ra0.2-Ra0.4um. This machine can be part honing, so as to repair the parts.

This deep-hole strong honing machine equips touching screen and PLC, AC servo motors, honing box stepless speed, steady and easy to operate.

2M2125A, 2M2135A, 2M2150A Deep-hole strong honing machines are dedicatedly applicable to equipments with deep-hole cylinder-shaped parts for various hydraulic fluid & gas cylinders. In addition to producing holes with IT1 Accuracy and Ra0.2-0. 4μm Roughness, these machines can also handle local honing to repair conicity and ovality.

Constant Voltage for both honing stick and workpiece during honing practice enables strong honing to assure high efficiency of deep-holing for 2M2125A, 2M2135A Deep Hole Strong Honing Machines. For typical cylinder-shaped parts holing, rough and refine honing will be done after Boring. If cold-drawn steel tube is used, strong honing eliminates demand for traditional multiple-procedures and improves the productivity. Honing is applicable to casting and all kinds of steels, including hardened workpiece.

Features of Deep Hole Strong Honing Machine

Deep hole strong honing machine is equipped with KND Digital-control system and AC Servo Motor; 2M2125A, 2M2135A, 2M2150A Deep-hole strong honing machines adopt continuously viable (CV) for honing bar, enabling smooth reverse and convenient speed regulation to assure hole size accuracy and reduce efforts input.

Technical Parameters of Deep Hole Strong Honing Machine

Specifications

Parameters

2M2125A

2M2135A

2M2150A

Honing diameter range

40mm-250mm

40mm-350mm

40mm-500mm

Honing depth

12000mm

12000mm

12000mm

Center height

350mm

350mm

350mm

Clamping workpiece diameter range

60mm-350mm

60mm-350mm

60mm-350mm

Honing box spindle speed range

25-250r/min 2gear stepless

25-250r/min 2gear stepless

25-250r/min 2gear stepless

Honing box reciprocating speedrange

3-20m/min

3-20m/min

3-20m/min

Honing box motor power

7.5kw (inverter motor)

7.5kw (inverter motor)

11kw (inverter motor)

Honing head expanding hydraulic system oil pump flow

12.5L/min

12.5L/min

12.5L/min

Honing head expanding hydraulic system oil pump max working pressure.

4Mpa

4MPa

4Mpa

Coolant pump flow

100L/min

100L/min

100L/min

Coolant chamber volum

950L

950L

950L

Honing head expanding hydraulic system oil pump motor power

1.1kw

1.1kw

1.1kw

Coolant pump motor power

1.5kw

1.5kw

1.5kw

Reciprocating motor power

5.5kw

5.5kw

7.5kw
