ZSK2103×4×500mm Four Axis Deep Hole Gun Drilling Machine
Home » Products » Gun Drilling Machine » ZSK2103×4×500mm Four Axis Deep Hole Gun Drilling Machine

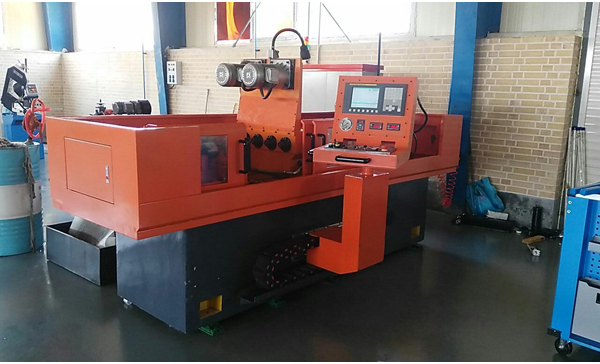

ZSK2103X4x500mm Gun Drilling Machine

Four Axis Deep Hole Gun Drilling Machine

Headstock, chips removal, circulation pump are optinals, offer did not include the equips mentioned.

Details of the machine

Adopts gun drill processing method.drilling bits rotary and infeeding are stepless. Four spindles structure, can drill four workpiece at the same time.

CNC SYSTEM: GSK (China) or semi auto.

Hole diameter: Φ3mm~Φ10mm

Max Depth: ≤ 500mm

Machine mainly parts

1. Machine bed

Casted machine bed, good rigidity and steady.

2. Drilling box

3. Infeeding system

Servo motor drive, infeed speed stepless. Infeed speed 0~500mm/min.

4. Coolant system

5. Pneumatic system

6. Electric system

7. Guide rest

8. Drilling bar rest

9. Workpiece support rest

Machine Mainly Parameters

Size

Parameters

Remak

Working capacity

Drilling diameter

Φ3~Φ10mm

Max. depth

500mm

Spindle quantity

4pcs

Spindle distance

140mm

Customer can decide

Work pice outer diameter

≤ 100mm

Depended by spindle distance

Machine character

Drilling box

Speed

300~5000r/min

stepless

Motor power

4kW×2

Inverter motor

Z axis

Infeed speed

0~500mm/min

stepless

Rapid speed

3000mm/min

T working table

400mm×600mm

Cutter center to working table height

240mm

Total power

20kW

Diameter-length ratio

100

CNC

GSK(China)

Coolant system

Coolant pressure range

1~10MPa

adjustable

Coolant system flow

120L/min

adjustable

Filtering accuracy

40μm

Workpiece Processing Procedure

1. Fix the workpiece on the clamping tools.

2. Pneumatic system control guide suite of the guide frame.

3. Start the cooling system high pressure pump group.

4. Start the drilling bar box, drive the driller rotary.

5. Z axis infeed system drive driller infeed.

6. After drilling to the setted position, driller return, coolant stop, sealed guide suite loose.

2~6 steps are completed by CNC control.

Mainly Structure of the Machine

Machine body

Drilling bar box

Infeeding system (Z axis)

Coolant system

Oil temperature controller machine

Auto chips removal device

Central lubrication system

Pneumatic control system

Guide frame system

Drilling bar support system

Gsk CNC control system

Spare Parts

Oil chamber filter device and filter paper

Overflow valve
