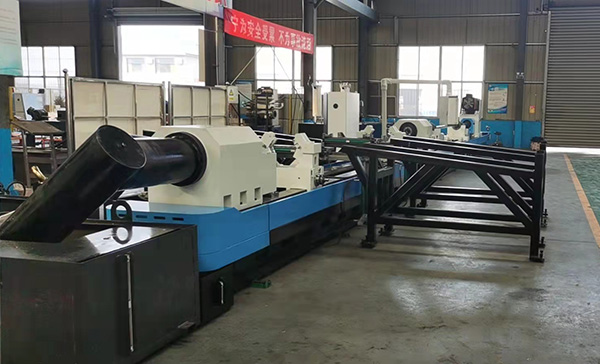

TG2115x4000mm Deep Hole Skraping Boring Machine
Home » Products » Deep Hole Skiving, Roller Burnishing Machine » TG2115x4000mm Deep Hole Skraping Boring Machine
Description and Features of TG2115x4000mm Deep Hole Skraping Boring Machine

The bed of TG2115x4000mm deep hole skraping boring machine is manufactured by high quality cast iron, with strong rigidity and strong stability. Boring bar box spindle is drove by ac servo motor, boring bar box spindle is drove by servo motor, wide speed range, large output torque, feed system uses AC servo motor driven double rack transmission, smooth feeding, long service life and can adapt to the needs of all kinds of deep hole machining process, workpiece loading card adopts tight hydraulic cylinder, stable and reliable, easy handling, electrical system adopts centralized control CNC system, can be interactive, graphical display, flexible operation, safeand reliable. In production it is suitable for mass production can also be suitable for small batch production.

TG2115x4000mm deep hole skraping boring machine is equipped with large capacity automatic chip removal machine, drum magnetic separator, collect automatically iron into attle box, cooling fluid can be recycled by precision filtration.

TGG2115x4000mm deep hole scraping boring machine has a big ration power, a high rigidity, a wide allowance of machining process, and a very high machining efficiency, as ideal equipment suitable for machining various cylindrical deep-hole work pieces, capable of machining various mechanic hydraulic oil cylinders, the through-holes and stepped holes, etc. of cylindrical work pieces, etc. The machine is mainly used for bore and roll machining. The machine adopts the fine-scraping and rolling integrated machining process based on the rotation of boring tool. Front-row scraping is adopted for boring. The boring way is push boring, oil feeding by oil feeder at the center of boring bar and headstock chip removal. Rolling is post-tensioning rolling. Korean SRB high-speed scraping/boring rolling head is applied. The application of this machine will bring an epoch-making revolution to the production process of oil cylinder. The cylindricity and the concentricity of machining work piece are very high. The cutting and rolling speed of producing oil cylinder with cold drawn pipe can reach 1.2 meters/min.

Machine Main Technical Data

Item

Parameter

Working scope

Boring hole diameter range

Ф38-Ф150mm

Workpiece length

4000mm

Boring bar box spindle parameters

Center height

> 300mm

Leading end of cone hole boring bar box spindle

Ф80mm 1:20

The spindle speed range

50-1800r/min

(Ac frequency conversion stepless speed regulation)

Output shaft torque

≥1000N.m

Feed parameters

Feed speed range

5-2000mm/min (stepless)

Plate moving fast

3m/min

Machining accuracy

Locate the length

0-4m

Workpiece surface roughness of boring

≤Ra3.2μm

Workpiece surface roughness of rolling

≤Ra0.8μm

Workpiece machining straightness

≤0.05/500 mm

Workpiece machining roundness

≤0.029/200mm

Motor capacity

Boring bar motor power

30KW Ac servo motor

Feed motor

5.5kw Ac servo motor

Hydraulic pump station motor

1.5KW Ac motor

Output cooling pump motor power

7.5KW one set

Automatic chip removal motor power

1.5KW one set

Magnetic separator motor power

0.75KW one set

Centralized lubrication motor

0.75KW one set

Others

Head of the biggest pre-tightening force for the workpiece

30KN

The cooling system flow

200L/min

Cooling system rated pressure

0.36Mpa

Magnetic separator flow

300L/min
