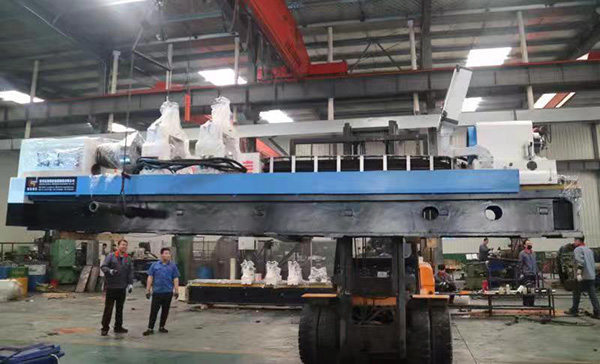

BTA Drilling and Gundrilling Combined Machine
Home » Products » Deep Hole Drilling and Boring Machine » BTA Drilling and Gundrilling Combined Machine
Machine Brief of BTA Drilling and Gundrilling Combined Machine
The machine is horizontal type, adopt gun drill (chips remove outside of the tube) and BTA (chips remove inside of drill bar) two processing way, can not use those two method at the same time.
a. Hole diameter range: Gun drill (chips remove outside of the tube): φ6mm~φ30mm.
b. BTA (chips remove inside of drill bar): φ16mm~φ50mm
c. Max. Depth : 1000mm
d. Workpiece max. Length: 1000mm
e. CNC system : KND
Machine Parameters of BTA Drilling and Gundrilling Combined Machine
Specifications |
Parameters |
Remarks |
|||||
Working capacity |
Hole diameter range |
Gun dill |
Φ8~Φ30mm |
- |
|||
BTA |
Φ16~Φ50mm |
- |
|||||
Max. Drill hole depth |
1000mm |
- |
|||||
Max. Workpiece length |
1000mm |
- |
|||||
Machine Characters |
Z axis |
Feed speed range |
0~500mm/min |
Stepless |
|||
Rapid move speed |
3000mm/min |
- |
|||||
Feed motor torque |
15Nm |
Equips speed reducer |
|||||
Drill box |
Rotary speed range |
450~2000r/min |
Stepless |
||||
Motor power |
15KW |
Spindle motor |
|||||
Others |
Max. L/D Ratio |
50: 1 |
- |
||||
Power supply |
380V/50Hz |
- |
|||||
Working environment temperature |
0~40℃ |
- |
|||||
CNC system |
KND |
||||||
Coolant system |
Max. pressure |
8MPa |
Adjustable |
||||
Max. flow |
200L/min |
Adjustable |
|||||
Filter accuracy |
40μm |
- |
|||||
