T2250A Deep Hole Drilling and Boring Machine
Home » Products » Deep Hole Drilling and Boring Machine » T2250A Deep Hole Drilling and Boring Machine

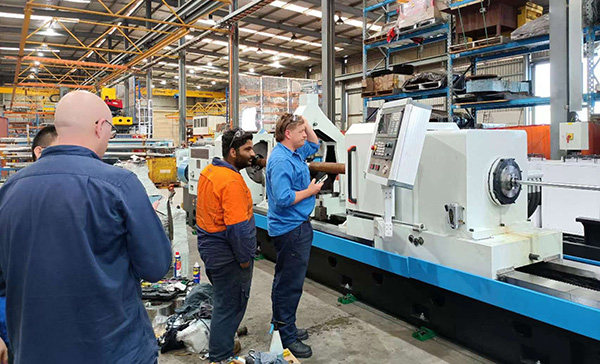

T2250A Deep Hole Drilling and Boring Machine

T2250A deephole drilling and boring machine is new product which is inovated on the base of our matured deephole drilling boring machine T2250A. According to the length of workpiece, the products adopts two processing technics: it adopts supplying oil by the guide carriage and hydraulic clamping workpiede when the workpiece is short, and adopts supplying oil from the end of oring bar and clamped by four claw chuck. The inovated guide carriage structure have the advantage of heavy loading of the workpiece and high rotate precision. The guideway is treated by quenching so that it has a high rotate precision. The guideway is treated by quenching so that it has a high resistamce of wearing. The surface roughness reaches to 0.4-4.8µm. According to the workpiece, several work style can be choosed:

1.Workpiece rotate, cutting tool rotate and move to-and-fro.

2.Workpiece rotate, cutting tool not rotate only move to-and-fro.

3.Workpiece not rotate, cutting tool rotate and move to-and-fro.

Main Specifications and Features of T2250A Deep Hole Drilling and Boring Machine

Specifications

Technical data

The range of boring diameter

250-500mm

The range of boring depth

1000-8000mm

The range of workpiece calmped diameter

60-330mm

Spindle bore diameter

350mm

Taper of spindle bore

75mm

Range of spindle speed and step

85mm 1:20

Range of boring bar speed and step

40-500r/min 11kinds

Feed speed range

5-1000mm/min (stepless)

Carriage raped-moving speed

2m/min

Main motor power

30kW

Motor power for boring bar

1.5kW

Feed motor power

3kW

Hydraulic pump motor power

4.4kW

Cool pump motor power

5.5kW 4group

Rated pressure for cooling system

2.5MPa

Flow of cooling system

100 200 300 400L/min

Total motor power

6.3MPa

Total weight (N/W)



Floor space (L×W×H)



Overall Dimensions and Weight

Length

Floor space (L×W×H)

Net weight (t)

Gross weight (t)

T2225

T2235

T2225

T2235

T2225

T2235

1000

7948×3150×1550

7980×3500×1850

12

12.7

13

13.6

2000

9948×3150×1550

9980×3500×1850

14.5

15.1

15

16.4

3000

11948×3150×1550

11980×3500×1850

16.3

16.8

17

18.2

4000

13948×3150×1550

13980×3500×1850

18.8

19.1

20

20.7

5000

15948×3150×1550

15980×3500×1850

20.6

21.1

22

22.5

6000

17948×3150×1550

17980×3500×1850

22.5

22.5

23

24.4

7000

19948×3150×1550

19980×3500×1850

24.5

24.2

25

26.2

8000

21948×3150×1550

21980×3500×1850

26.2

26.4

28

29.6
