2M2125 Series Deep Hole Honing Machine
Home » Products » Deep Hole Honing Machine » 2M2125 Series Deep Hole Honing Machine

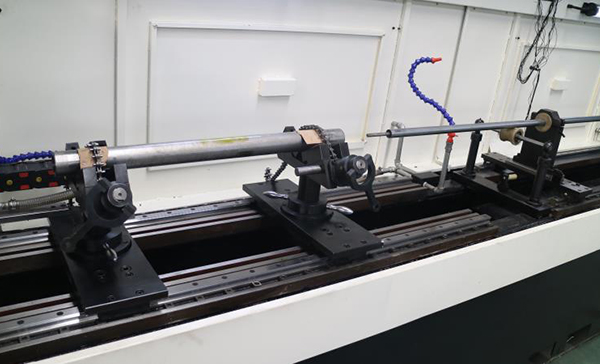

2M2125 Series Deep Hole Honing Machine

2M2125A, 2M2135A CNC High Efficiency Deephole Honing Machine is a special equipment used for honing cylindrical deephole parts such as various hydraulic oil cylinders and cylinders. Hole diameter accuracy of machined workpieces can be up to or over IT7 and surface roughness Ra0.2-0.4µm. It can also repair and maintain taper and ellipticity of machined workpieces with the help of partial honing.

This machine is mated with KND CNC system. AC servo motor, honing box adopt stepless speed, autocycle timing control unit is used on this machine during reciprocating honing so as to assure accuracy of machined holes and decrease the intensity of labour.

Sand blades and workpieces always maintain constant pressure during honing. It is a feature of high efficiency and strong cutting force. It can perform rough and finished honing of general cylindrical deephole parts after rough-boring. It can directly perform high efficiency honing of colddrawing steel pipes. Traditional deephole processing is simplified by using this machine. Productivity is greatly increased. Materials of honed workpieces may be casting iron or all kinds of steel including quench parts. Cooling system of this machine adopts the method of three-step filtering in order to assure clearing of coolant.

This machine is controlled by electrical operating center. It is easy, safe and reliable in operation. It can perform not only honing of mass products but also small batch workpieces. It is perfect equipment for machining deep hole parts.

Main Specifications and Features of 2M2125 Series Deep Hole Honing Machine

Specifications

Technical data (2M2125A)

Technical data (2M2135A)

Range of honing diameter

40-250mm

80-350mm

Max.honing depth

8000

12000

Height from spindle to bed

350

350

Diameter range of workpiece clamped

60-350

100-420

Speed range of spindle

25-250r/min

25-250r/min

Speed range of carriage rapid-moving

3-20m/min

3-20m/min

Main motor of honing box

7.5kW

15kW

Flow of honing head expanding system

12.5L/min

12.5L/min

Max pressure of honing head expanding system

4MPa

4MPa

Flow of cooling pump

50L/min

100L/min

Capacity of cooling box

950L

950L

Motor power of honing head expanding system

1.1kW

1.1kW

Motor power of cooling pump

2.2kW

2.2kW

Power of reciprocating motor

5.5kW

7.5kW

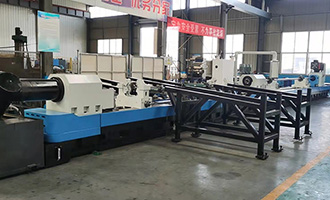

TG2125x6000mm Deep Hole Skraping Rolling Machine
TG2125x6000mm Deep Hole Skraping Rolling MachineTG2125x6000mm deep hole scraping rolling machine is applicable for machining cylindrical deep-hole work-pieces, various types of mechanic hydraulic oil cylinders, cylindrical through-holes and blind-holes and stepped holes. The machine is mainly used for bore and roll machining. The...

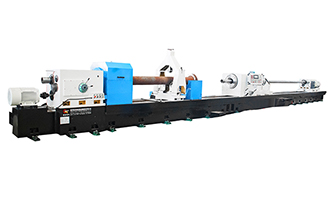

T2150 Deep Hole Boring Machine
T2150 Deep Hole Boring MachineT2150 deep hole drilling and boring machine is mature conventional products of our company, specialized for processing cylindrical hole workpiece equipment, machine tool rigidity, good precision, wide range of spindle speed, feed system driven by AC servo motor of Japan, can...

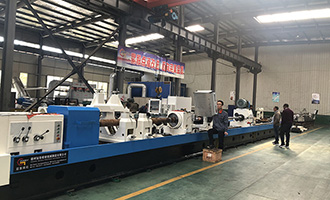

Deep Hole Pull Boring Machine
Deep Hole Pull Boring MachineThe deep hole pulling boring machine can work on inner hole pull-boring, expand and rolling-pressing. When pull boring machine work, workpiece will static (not rotary), cutter rotary and infeeding, the cutting liquid will enter to cutting area through oil provide device, cooling...

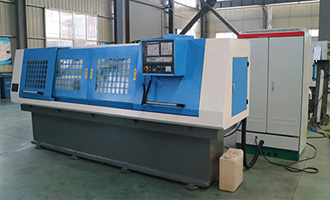

ZMK2102×1000mm Gun Drilling Machine for Glass Material
ZMK2102×1000mm Gun Drilling Machine for Glass MaterialThis deep hole gun drilling machine is used for optical fiber and cable manufacturing industry, drilling deep hole in a certain size in high-purity quartz glass rod of a certain diameter in a specific location requirements (commonly known as a Panda eye). The hole has a higher roughness, parallelism...

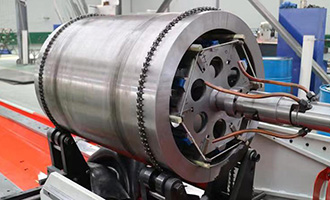

2M2125A Deep Hole Strong Honing Machine
2M2125A Deep Hole Strong Honing MachineThis deep-hole strong honing machine is specially for all kinds of cylinder shaped workpiece, worked by this machine, the accuracy is up to IT7, surface roughness is up to Ra0.2-Ra0.4um. This machine can be part honing, so as to repair the parts. This deep-hole strong honing machine equips...

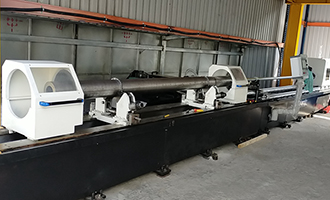

2M2125L Deep Hole Honing Machine
