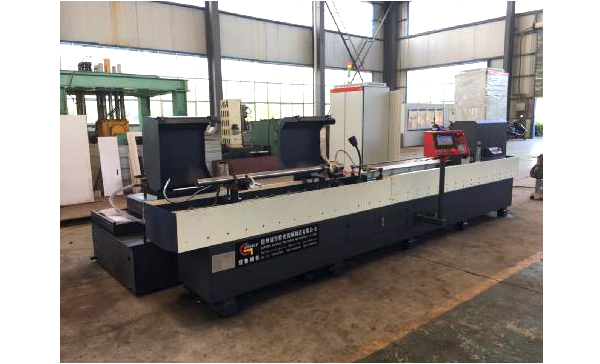

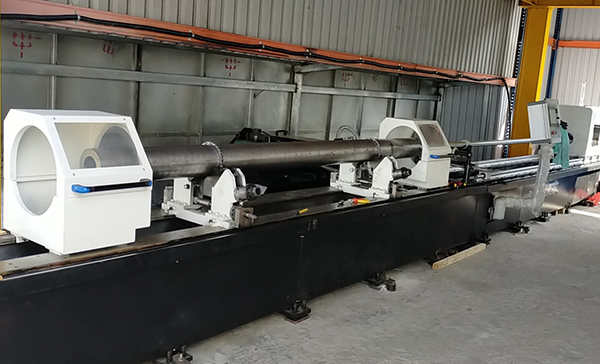

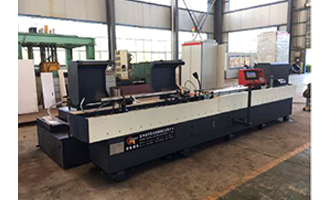

2M2125L Deep Hole Honing Machine
Home » Products » Deep Hole Honing Machine » 2M2125L Deep Hole Honing Machine
Usage and Character of 2M2125L Deep Hole Honing Machine

2M2125L Deep hole honing machine is specially for all kinds of cylinder shaped workpiece, after worked by this deep hole honing machine, the accuracy is up to IT7, surface roughness is up to Ra0.2-Ra0.4um. This machine can be part honing, so as to repair the parts.

2M2125L Deep hole honing machine equips touching screen and PLC, AC servo motors, honing box stepless speed, steady and easy to operate.

Technical Parameter of 2M2125L Deep Hole Honing Machine

Max diameter of the honing hole: 200mm

Max depth of the honing hole: 2000mm

Spindle center height: 300mm

Spindle speed range: 50—350r/min (stepless)

Honing box motor power: 7.5kw

Infeed speed range(stepless): 1-10m/min

Honing head expanding system pressing range: 0.5-6Mpa

Honing head expanding motor power: 0.75kW

Coolant system motor power: 90W

Coolant flow: 100L/min

Main Structure

2M2125L Deep hole honing machine consist of machine bed, honing box, carrier, carrier infeed system, rest, coolant system, electrical system, hydraulic system and so on.

Machine bed is welded by carbon steel, carrier, chambers are made by super strength casting iron. Which can make sure the machine good rigidity.

The machine operation buttons are in the front of the machine, easy to operate, the meter can show the pressure. Safety and realiable.

The machine coolant go through three grades filting.
