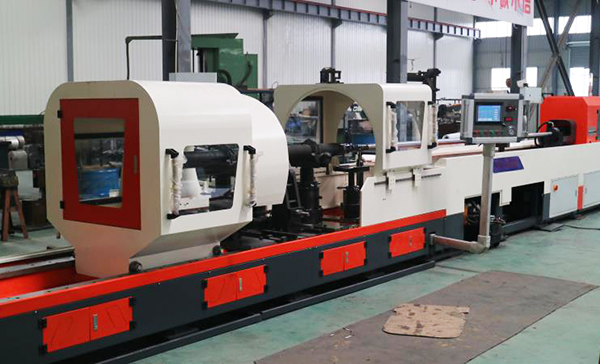

Name: Horizontal deep hole honing machine.

Model: 2M2150A x 10000mm

Deep hole honing machine diameter range: φ80-φ500mm.

Deep hole honing length Max: 10000mm.

Center height: carrier body guide surface to honing bar: 350mm.

Clamping jobs diameter range: φ150-φ650mm.

Honing box spindle speed range: 25-250r/min stepless.

Honing box spindle reciprocate speed range: 3-20m/min stepless.

Honing box motor power: 11K (Wconverter motor).

Honing head expand hydraulic system oil pump flow: 12.5L/min.

Honing head expand hydraulic system oil pump max pressure: 4Mpa.

Coolant pump flow: 100L/min.

Coolant box volume: 950L.

Honing head expanding hydraulic system oil pump motor power: 1.1KW.

Coolant pump motor power: 1.5KW.

Reciprocate motor power: 7.5kw.

Machine character:

2M2150A deep hole honing machine is suitable for cylindrical jobs honing and polish process, and also works for precision parts, after worked by the machine, the hole accuracy can be up to IT6~IT7, surface roughness can be up to Ra0.2-0.4μm. It adopts partical honing, the parts can be modified by processing the taper, ellipticity and local aperture error, the honing machine is an ideal device for high precision and high efficiency, we adopts PLC control of Delta, running steady, easy to adjust the speed. It is easy to warranty the hole size accuracy and reduce labor intensity.

When working, the machine use sandy stone to hone, the honing bar box reciprocate move, which can make sure the efficient. The machine can be used after gun drilling machine.

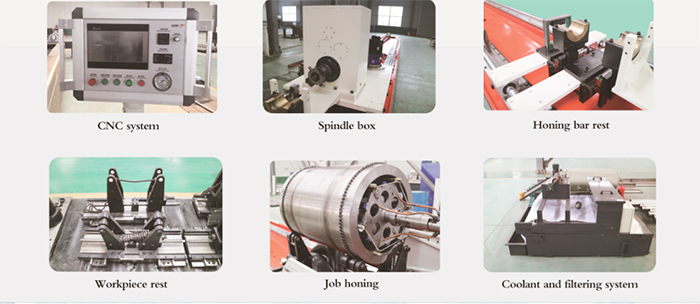

Machine structure:

Honing box

We use 11kw motor drive spindle box to send turning and torque to the honing bar, tuning speed is 25~250r/min.

Carrier recipracate system

Carrier recipracate movement driven by servo motoring gear box.

Honing head support frame

Position in front of the carrier working table, installed on the rail way, height can be adjusted.

Coolant system

Coolant system use three grades filtering, filtering size is less than 30μm.

Machine bed body

Use strongly machine body, carrier body installed linear railway, high long lifespan and high precision.

Electric part

The machine use PLC system control, automatically control.
